AGB-009 / RV GARAGES

Switchback

Let the motor court introduce the collection.

3,000 sq. ft. total enclosed94′ × 70′ overall layout16′ main garage ceiling target5 architectural views + plan
DESIGNED AROUND THE WAY YOU LIVE

A driveway with two destinations

One pavilion holds the coach and the other houses the collector cars. Walk across the open court and the change in angle reveals a different view of the property on each side.

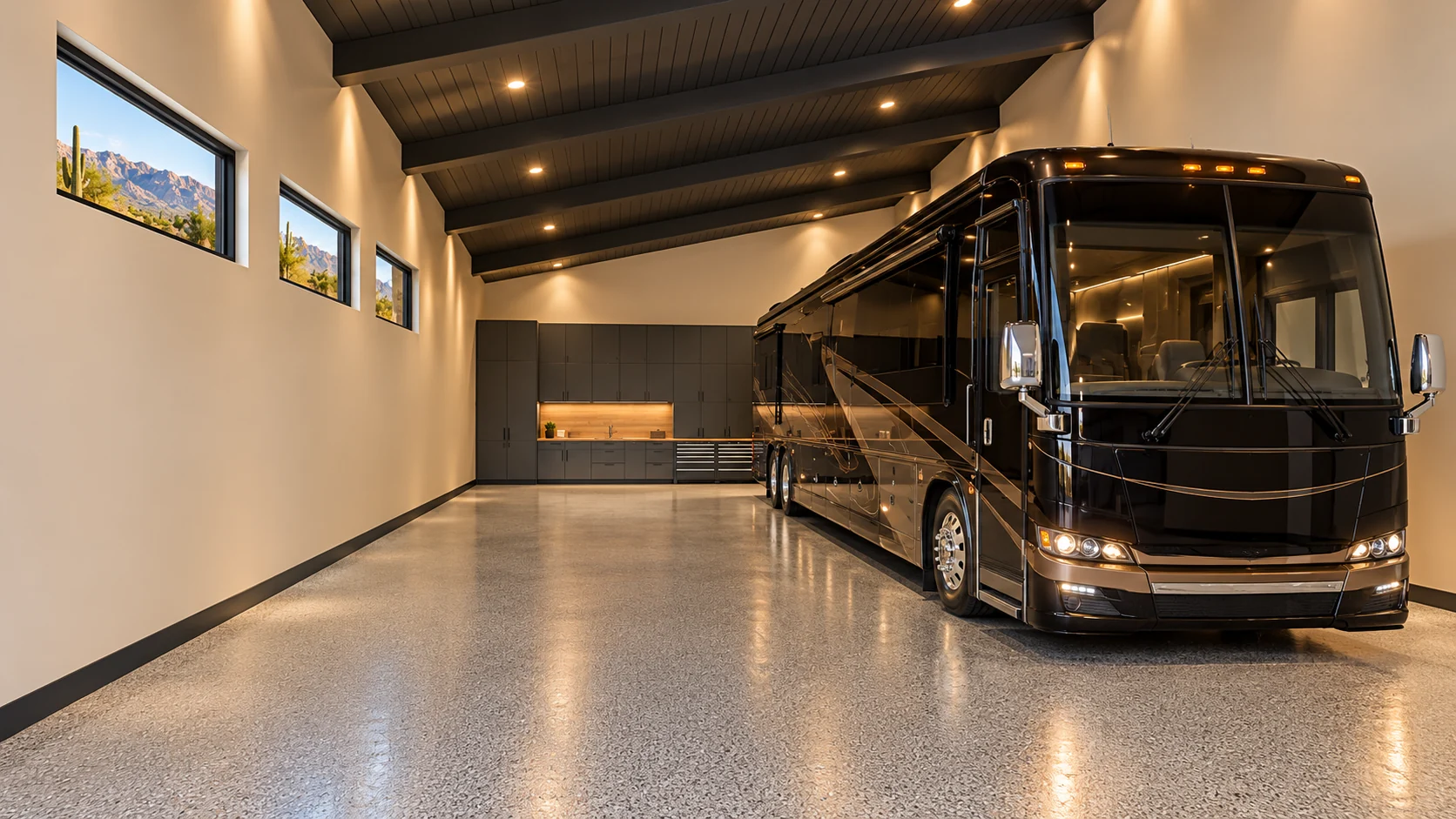

  • 1,200 sf RV pavilion

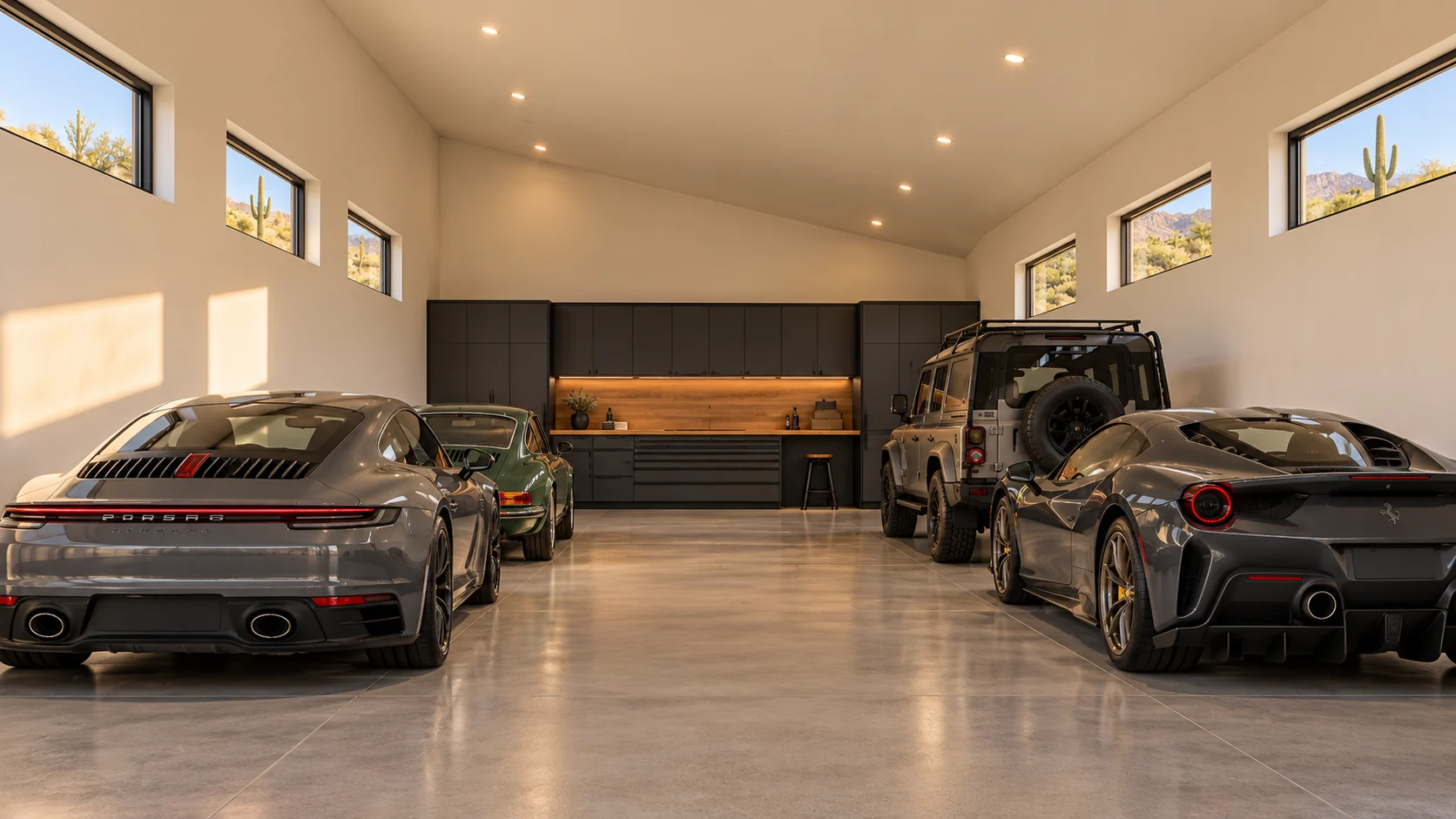

  • 1,800 sf tandem collector pavilion
  • Angled wings around an open motor court

Space by space

  • Total enclosed garage: 3,000 sf, split across two separate pavilions.
  • Open court and connecting pedestrian path excluded from enclosed area.

Room sizes and areas are concept allocations. Wall thickness, stairs, structure, and final equipment are resolved during project design.

Garage openings

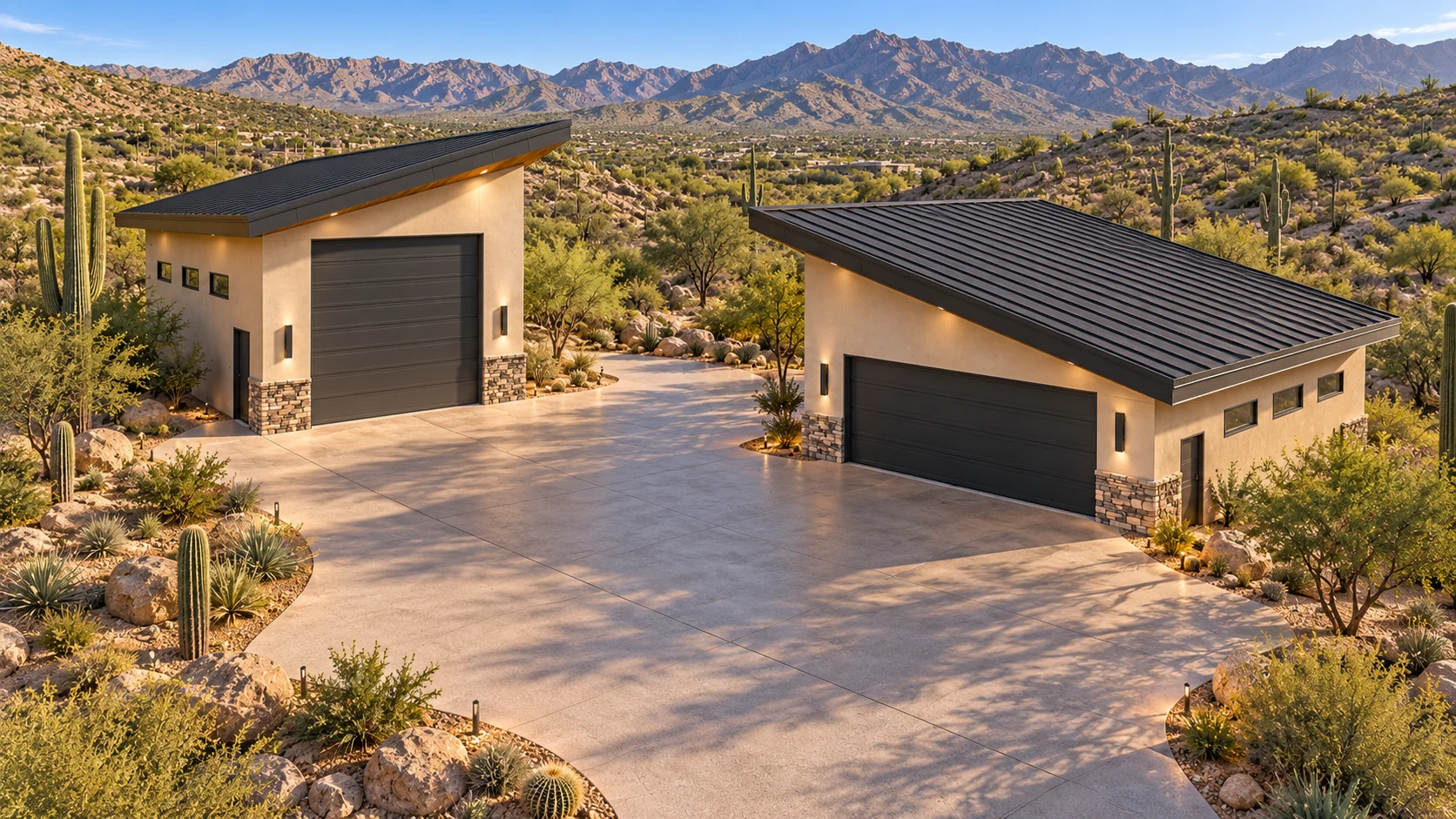

    Two warm ivory pavilions with charcoal standing-seam shed roofs, the right car pavilion rotated 25 degrees around an open motor court; stone plinths and copper soffit detail.

    THE CONCEPT PLAN

    Read the turn between pavilions

    Open full-size plan ↗

    Concept plan for inspiration and design discussion. Actual vehicle dimensions, circulation, structure, site access, utilities, and local requirements must be reviewed before construction. Open outdoor areas are excluded from enclosed square footage.
