AGB-003 / RV GARAGES

Open Road

Bring the coach home with room to unpack it in daylight.

1,000 sq. ft. total enclosed25′ × 40′ overall layout16′ main garage ceiling target5 architectural views + plan
DESIGNED AROUND THE WAY YOU LIVE

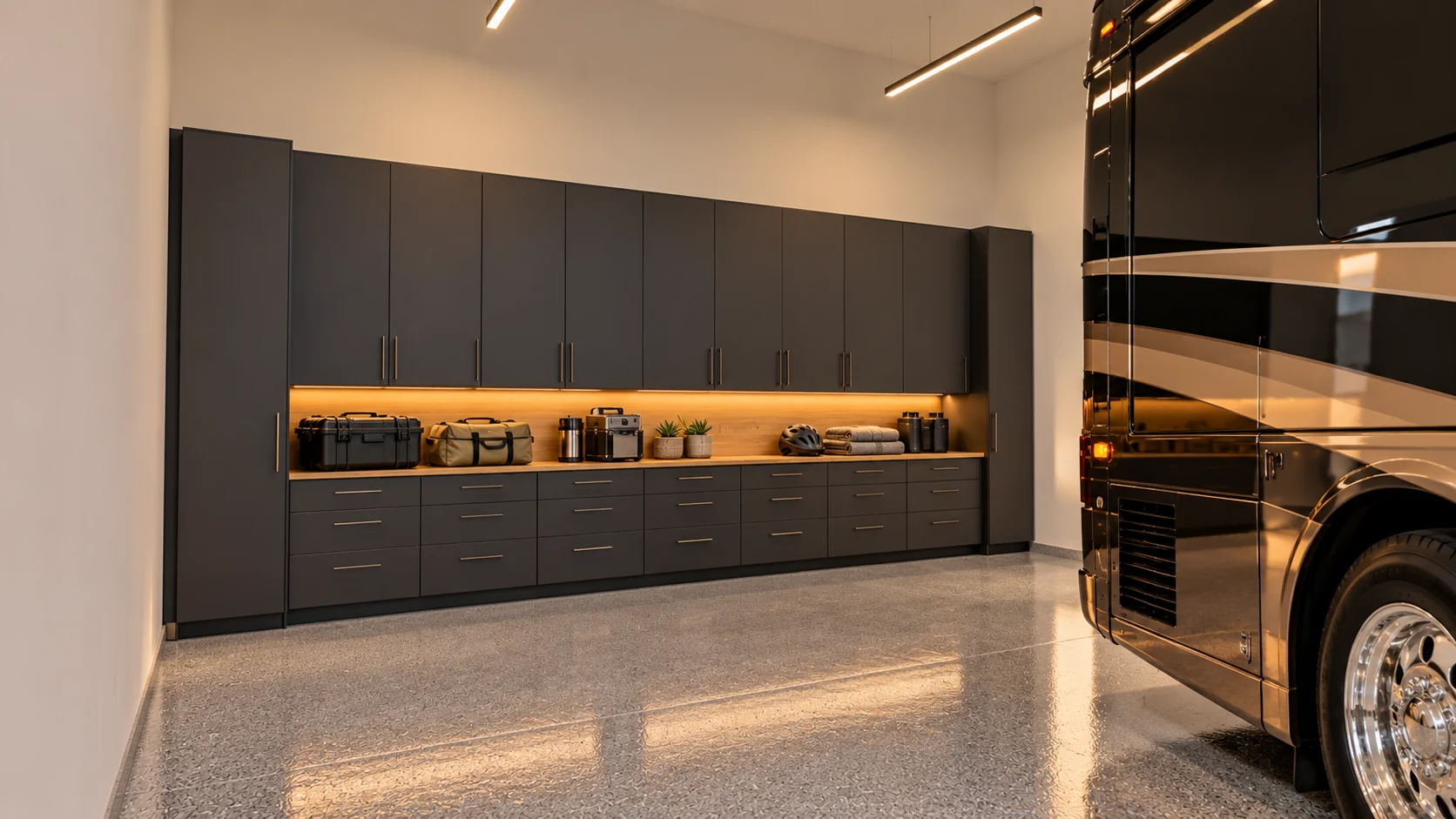

Coffee at the rear counter

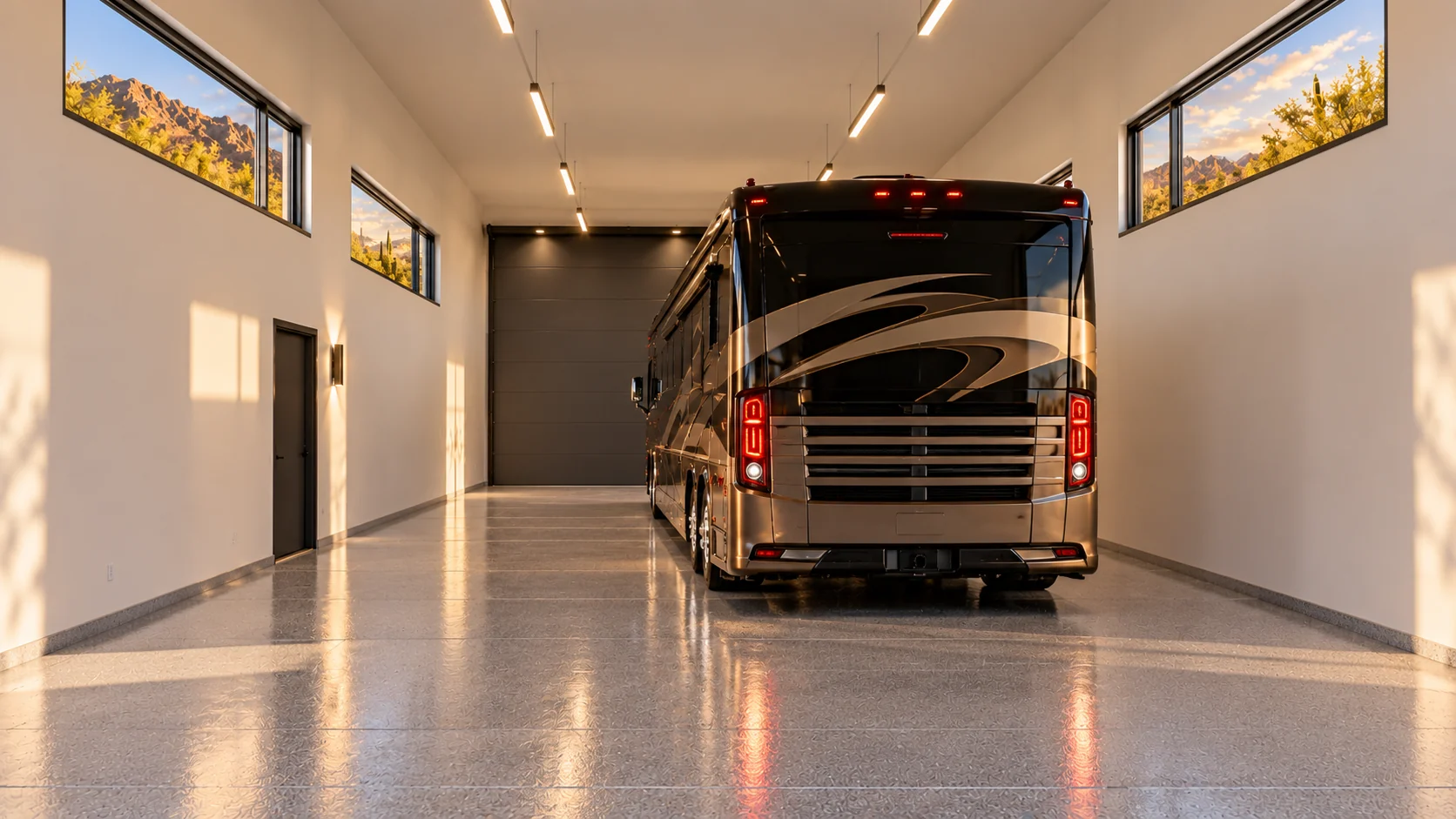

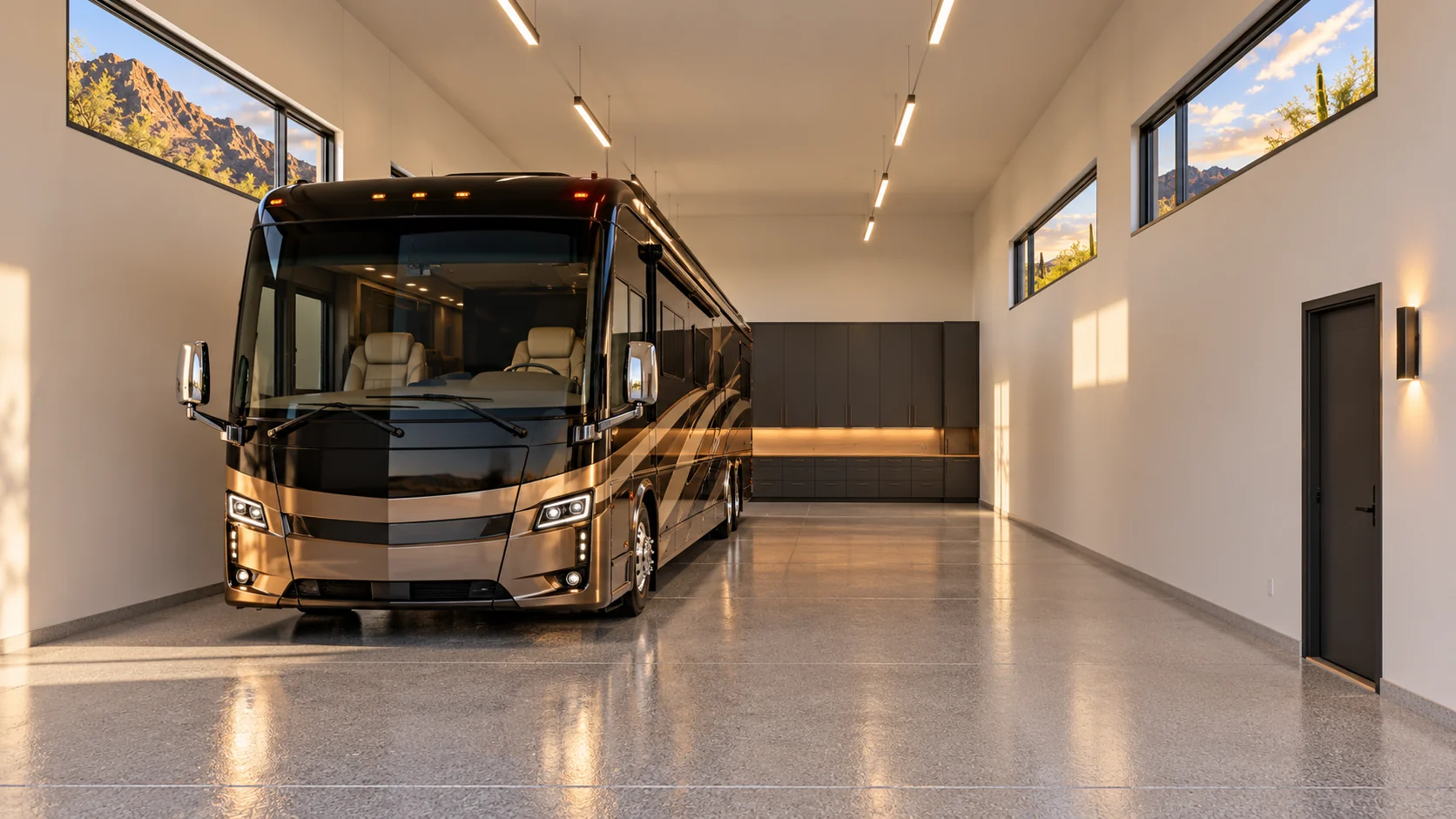

High side windows bring light into the bay while leaving the lower walls free for gear. The drawing shows a 31-foot coach, a useful starting point for measuring the space you want around your own rig.

  • 25′ × 40′ footprint
  • 31-foot coach envelope shown
  • 16′ clear ceiling and 16′ × 14′ overhead opening

Space by space

  • 1,000 sf garage; vehicle envelope 8′6″ × 31′; rear cabinetry 2′ deep.

Room sizes and areas are concept allocations. Wall thickness, stairs, structure, and final equipment are resolved during project design.

Garage openings

  • 16′ W × 14′ H (S wall)

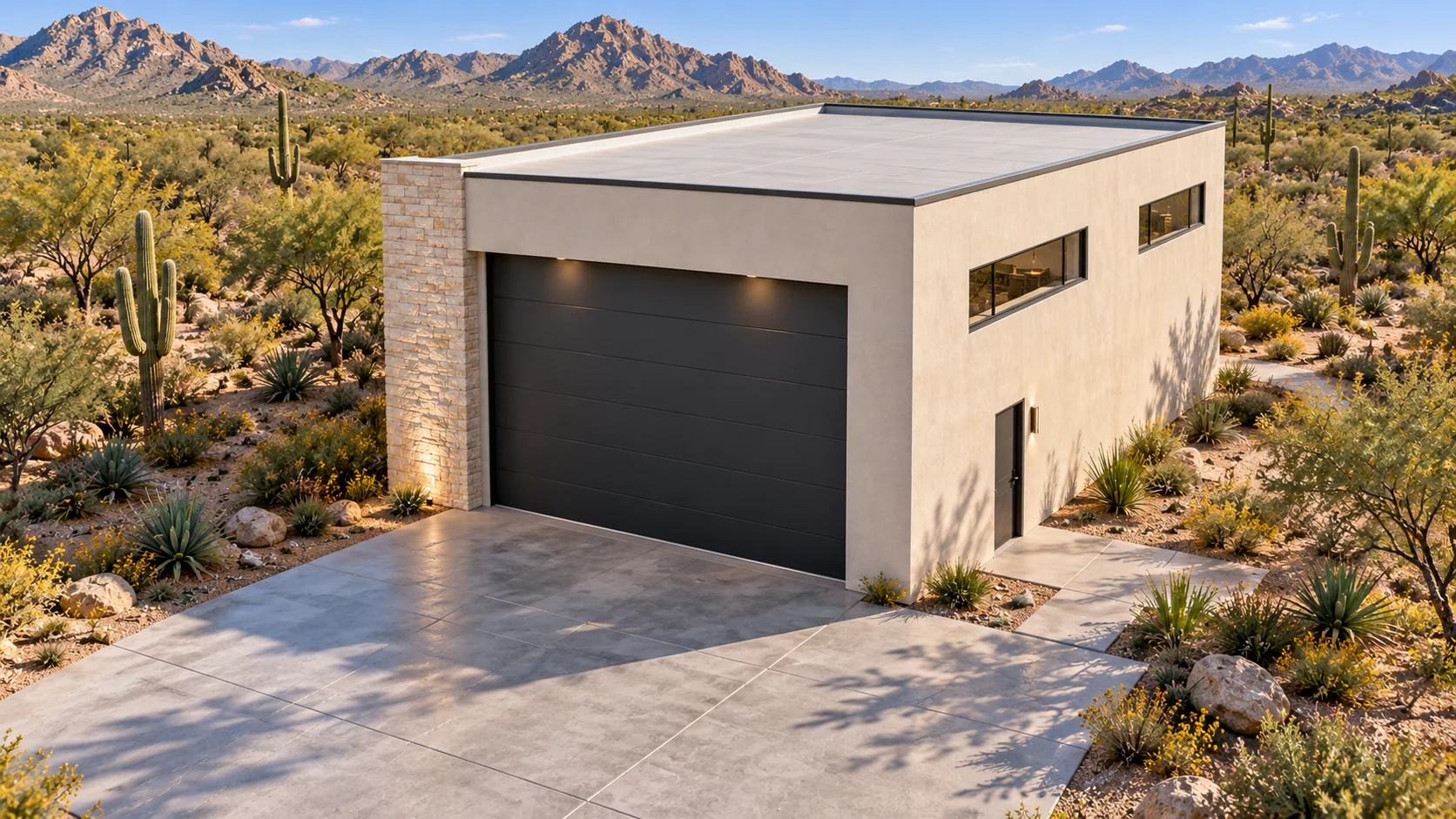

Light limestone-colored stucco, flat parapet, charcoal 16-by-14-foot door, limestone strip at left pier, grey epoxy, charcoal rear cabinets.

THE CONCEPT PLAN

Follow the 31-foot coach outline

Open full-size plan ↗

Concept plan for inspiration and design discussion. Actual vehicle dimensions, circulation, structure, site access, utilities, and local requirements must be reviewed before construction. Open outdoor areas are excluded from enclosed square footage.
