AGB-007 / RV GARAGES

Expedition

Keep the coach packed while the workshop stays open for the next repair.

2,200 sq. ft. total enclosed44′ × 50′ overall layout16′ main garage ceiling target5 architectural views + plan
DESIGNED AROUND THE WAY YOU LIVE

Three jobs in three rooms

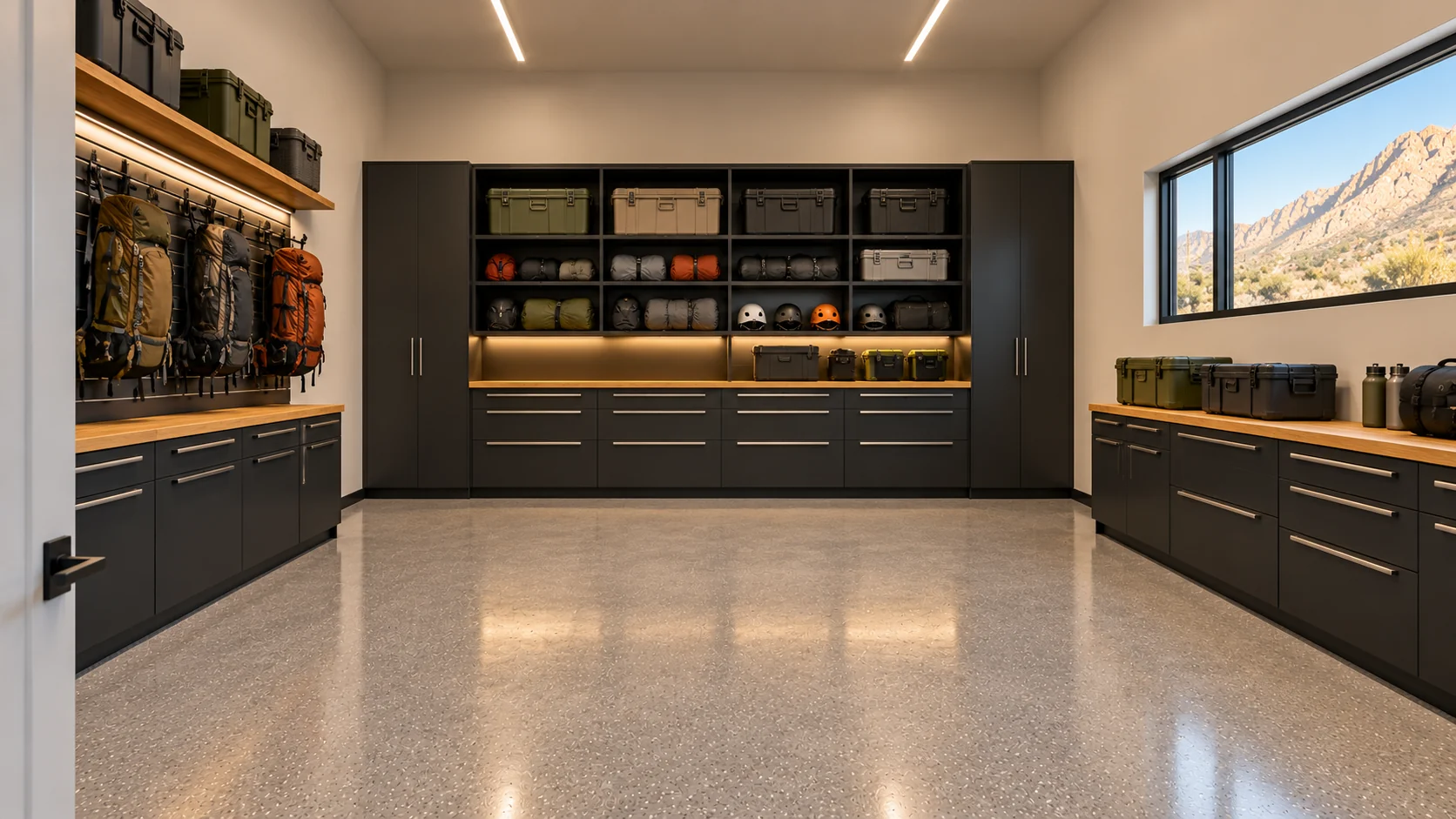

Unload the coolers and expedition boxes into the enclosed gear room. The workshop has its own walk-in door, so you can finish a repair after dinner with the coach packed for morning.

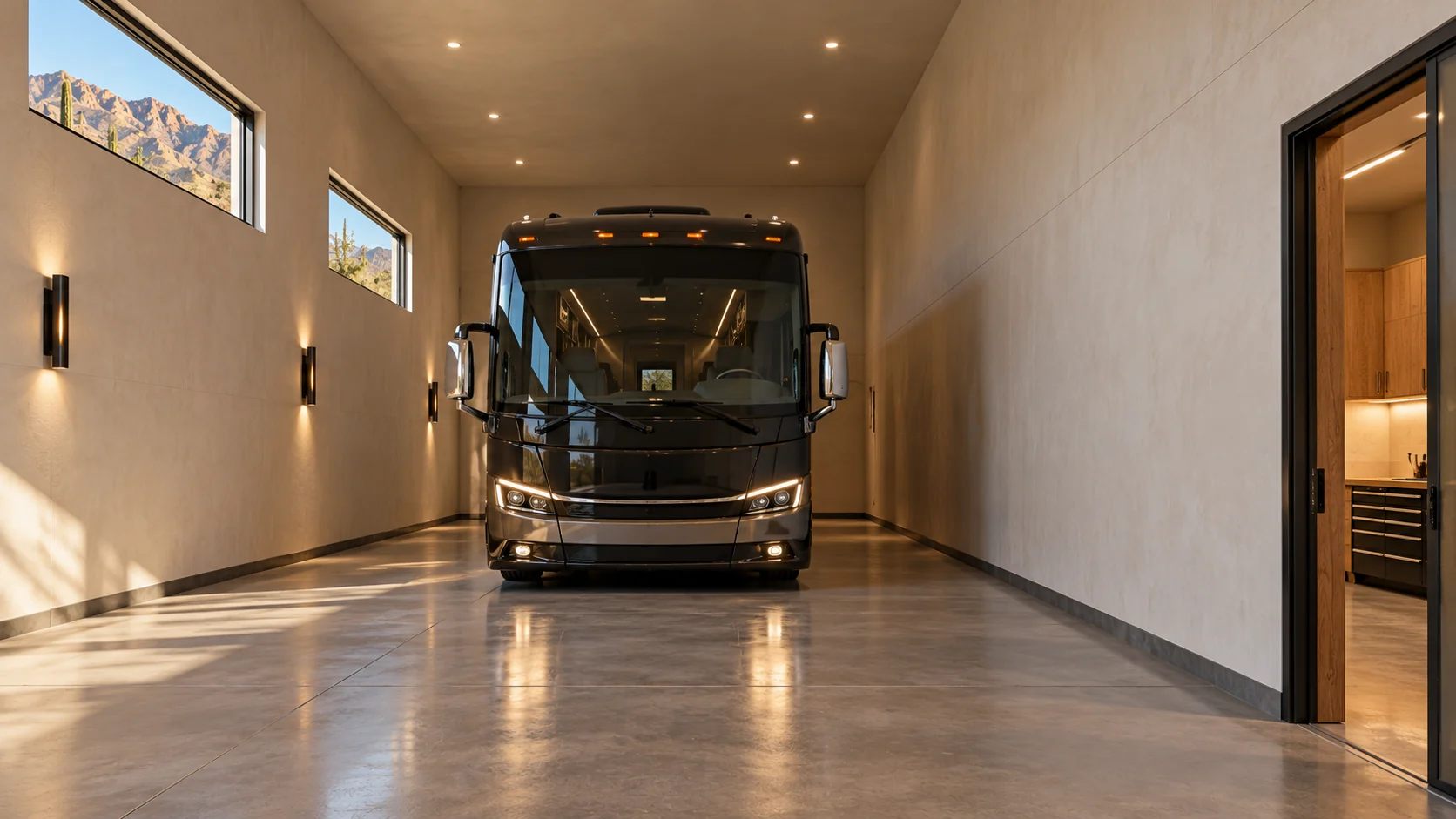

  • 24′ × 50′ RV wing
  • 400 sf enclosed gear room

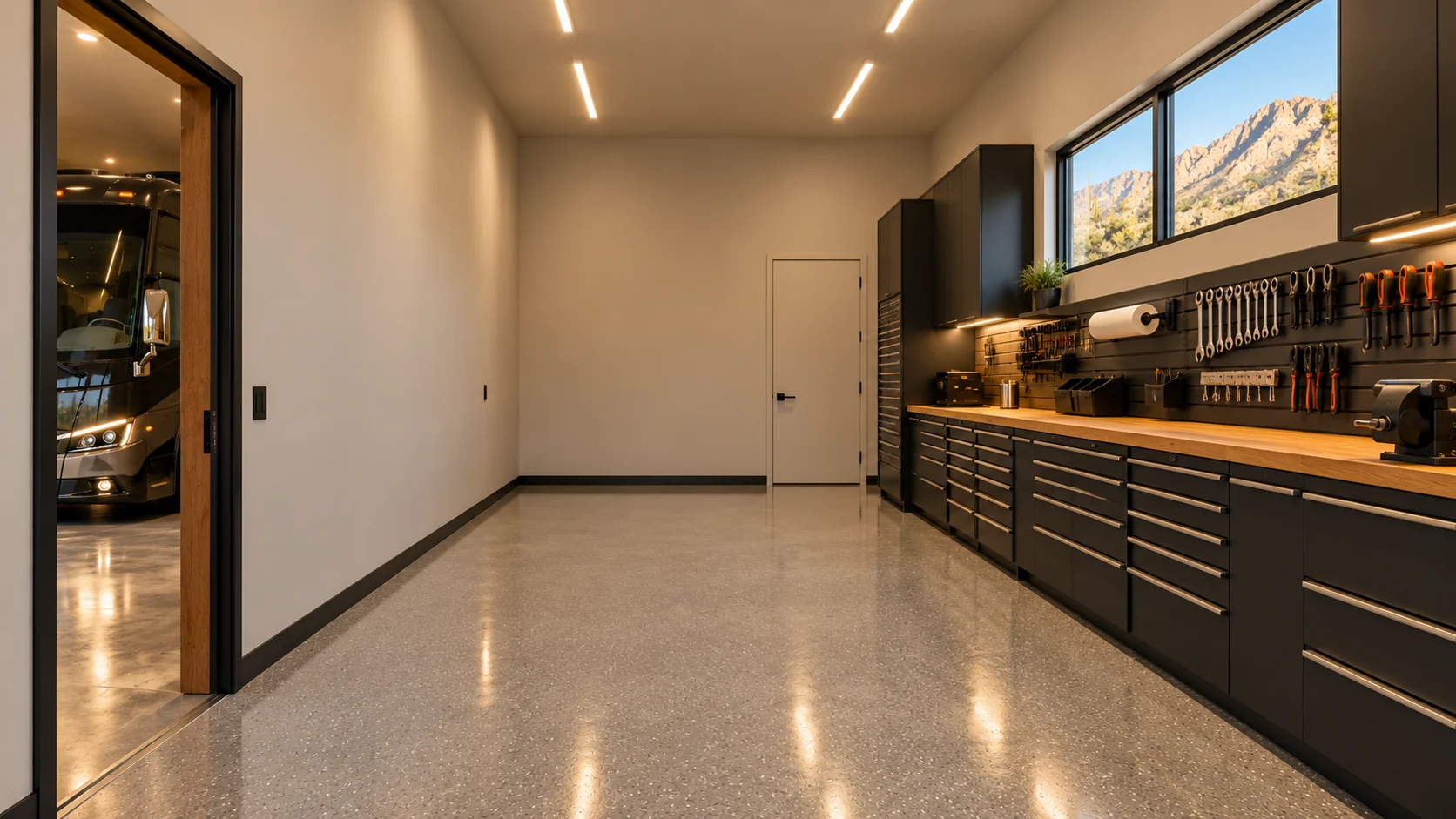

  • 600 sf workshop with independent walk-in entry

Space by space

  • Garage: 1,200 sf
  • Additional rooms: 1,000 sf
  • Total enclosed ground floor: 2,200 sf

Room sizes and areas are concept allocations. Wall thickness, stairs, structure, and final equipment are resolved during project design.

Garage openings

  • 18′ W × 14′ H (S wall)

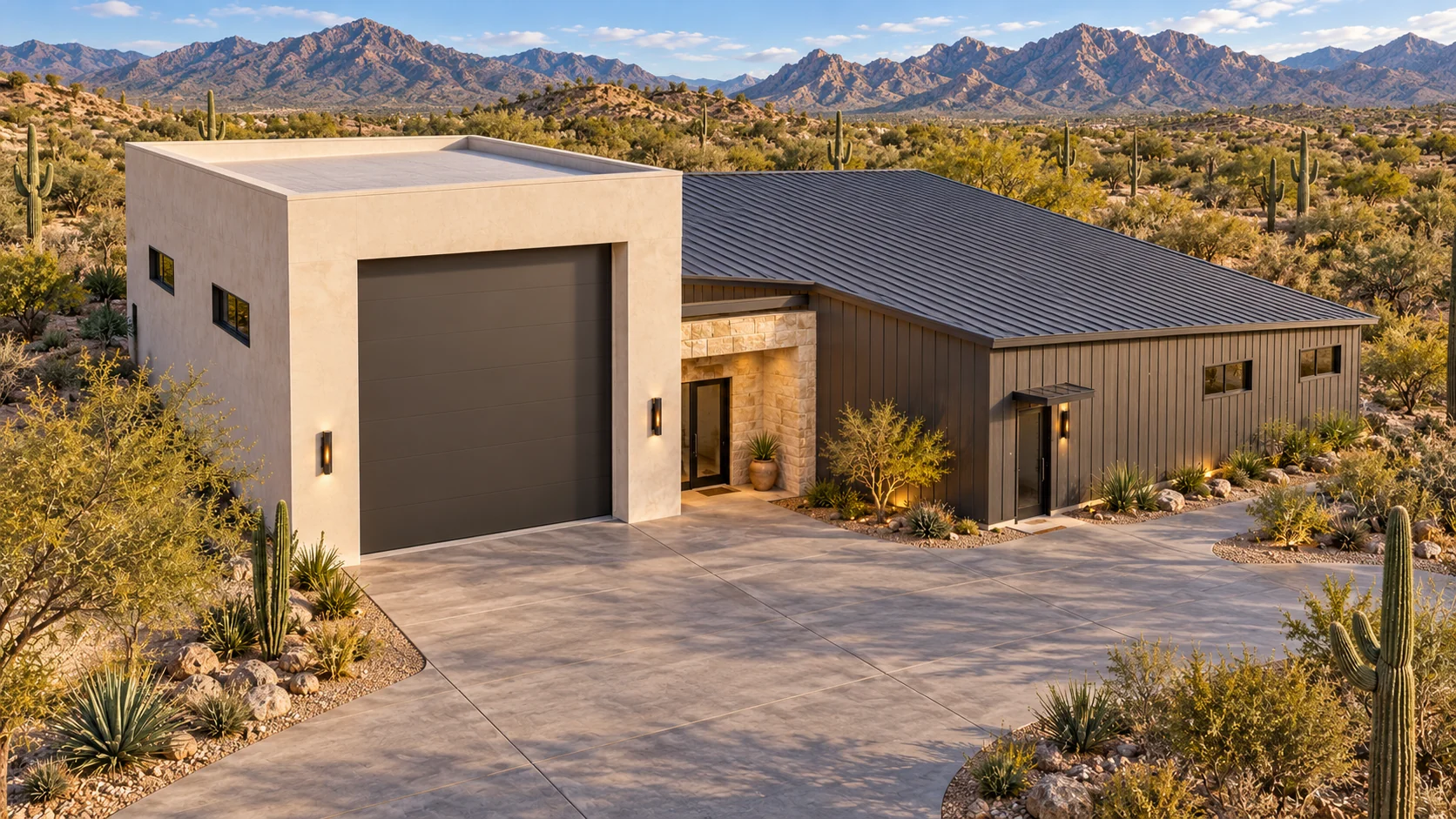

Ivory stucco coach wing with flat parapet; low charcoal shed-roof workshop wing; bronze-framed windows; limestone entry recess.

THE CONCEPT PLAN

Explore the coach and workshop wings

Open full-size plan ↗

Concept plan for inspiration and design discussion. Actual vehicle dimensions, circulation, structure, site access, utilities, and local requirements must be reviewed before construction. Open outdoor areas are excluded from enclosed square footage.
