AGB-014 / RV GARAGES WITH LOFTS

Overlook

Put down the wrench and take your coffee upstairs.

1,800 sq. ft. total enclosed32′ × 50′ overall layout18′ main garage ceiling target5 architectural views + plan
DESIGNED AROUND THE WAY YOU LIVE

The view from the end of the workday

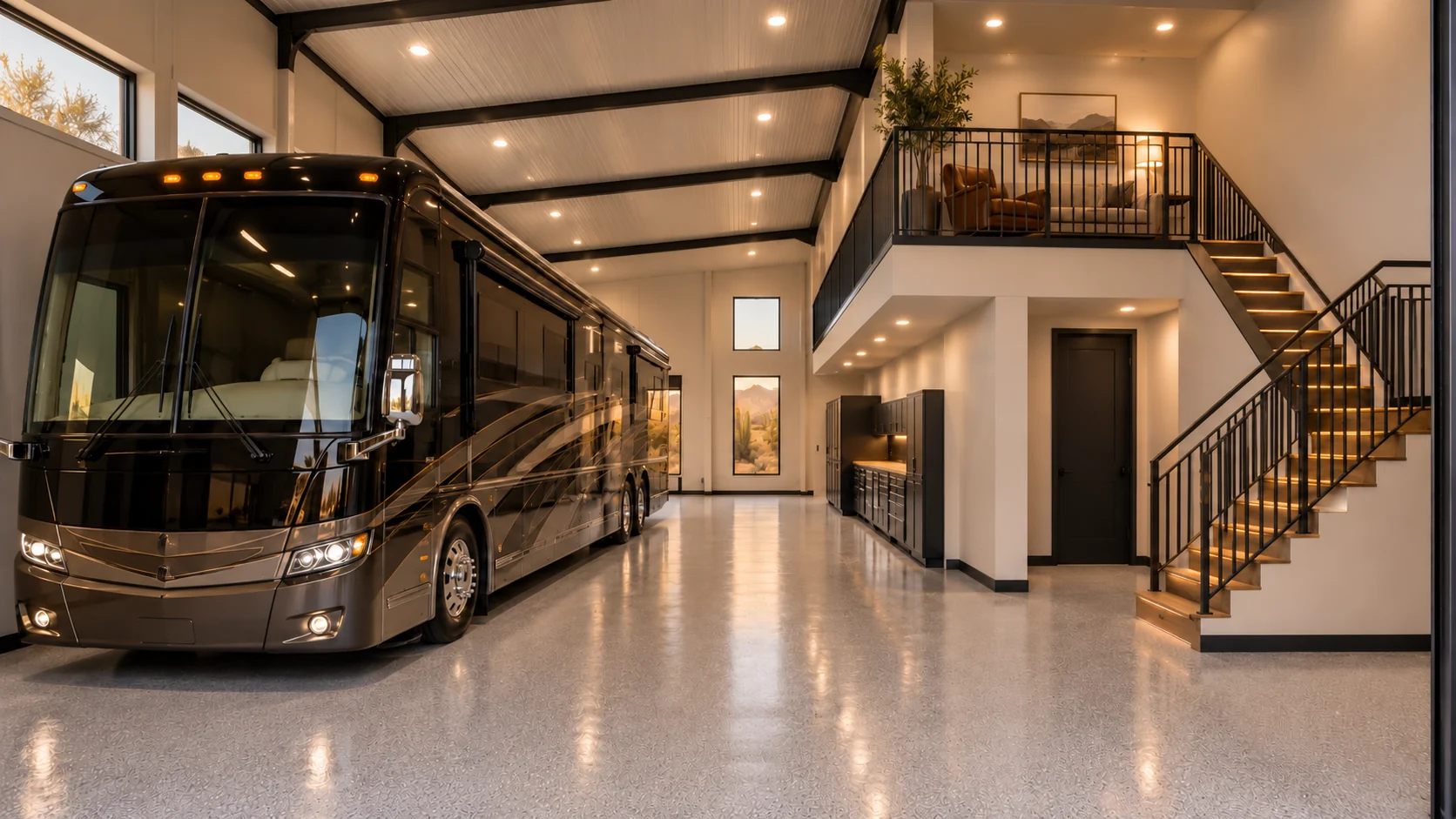

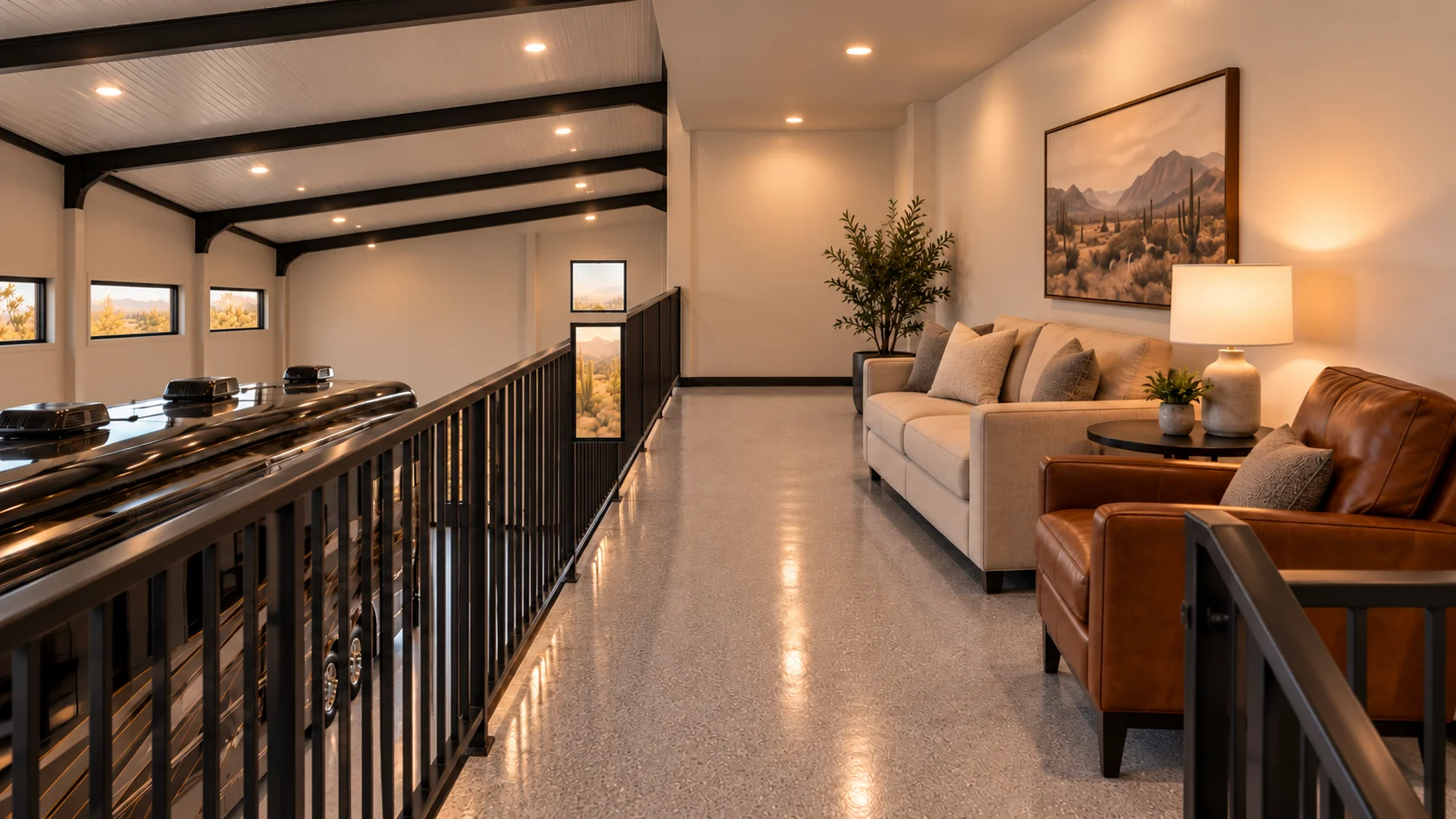

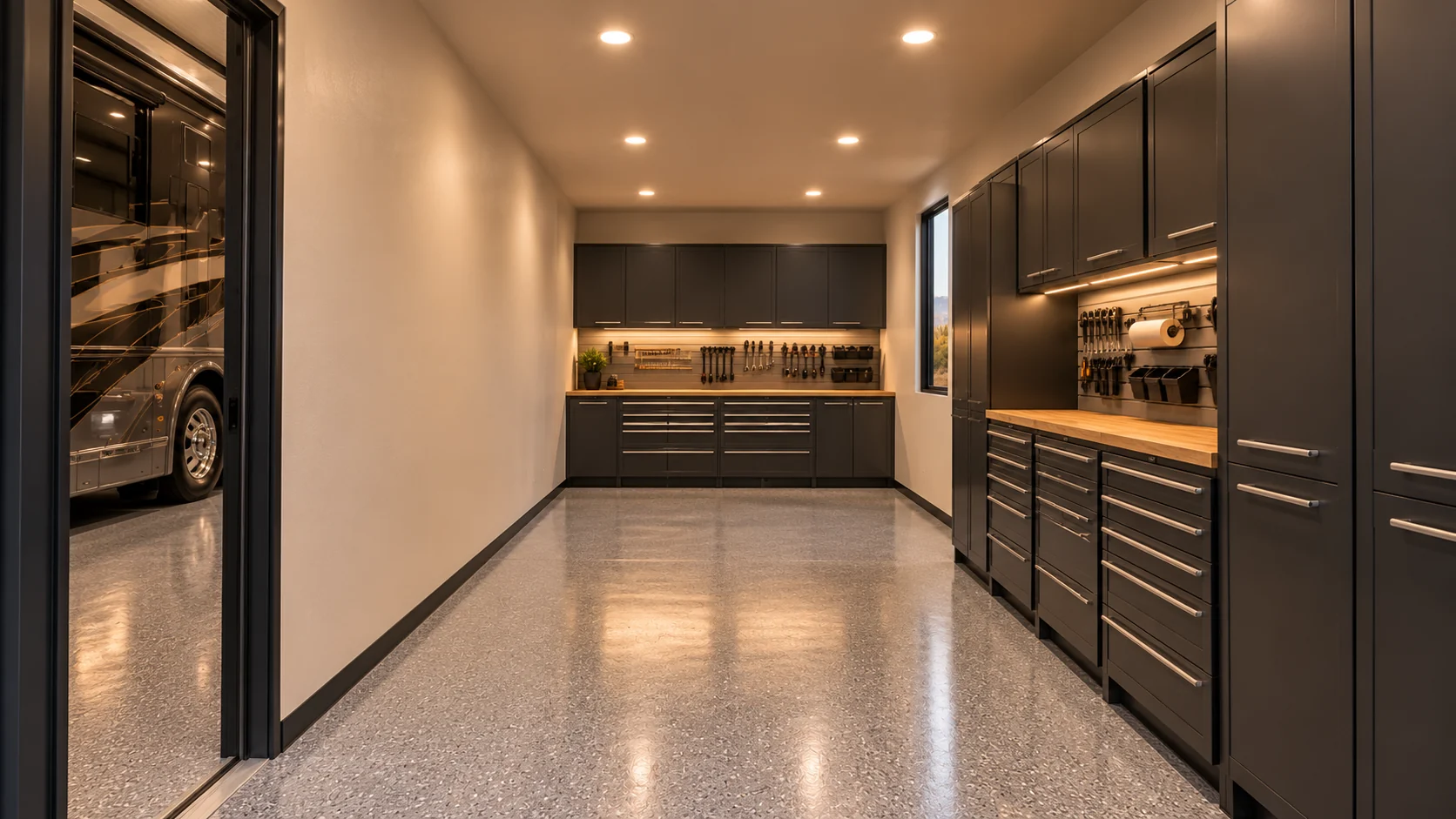

A workshop occupies the side wing, with a small viewing lounge above. It is a few steps from a bench full of parts to a seat looking back toward the coach bay.

  • 1,600 sf ground floor + 200 sf lounge loft
  • Full-height 40-foot coach bay
  • Workshop, stair, and lounge contained within a side wing

Space by space

  • Garage bay: 1,100 sf
  • Ground workshop/stair wing: 500 sf
  • Upper lounge floor: 200 sf
  • Total enclosed floor area: 1,800 sf

Room sizes and areas are concept allocations. Wall thickness, stairs, structure, and final equipment are resolved during project design.

Garage openings

  • 16′ W × 14′ H (S wall)

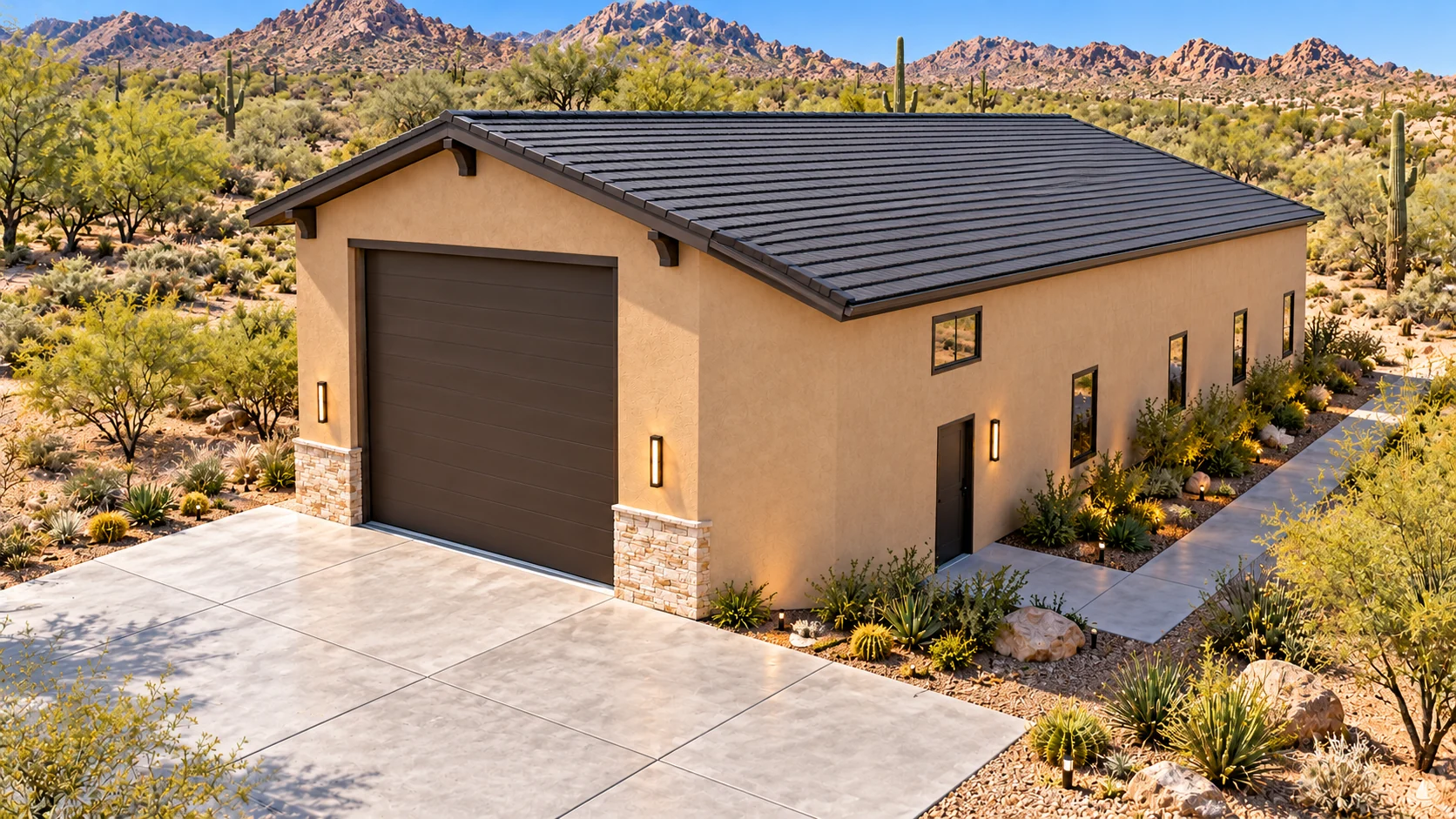

Warm sand stucco, tall charcoal shallow gable roof, bronze 16-by-14-foot overhead door, warm limestone side entrance, black guarded side loft with leather lounge furniture and fixed oak workshop below.

THE CONCEPT PLAN

Locate the lounge above the workshop

Open full-size plan ↗

Concept plan for inspiration and design discussion. Actual vehicle dimensions, circulation, structure, site access, utilities, and local requirements must be reviewed before construction. Open outdoor areas are excluded from enclosed square footage.
